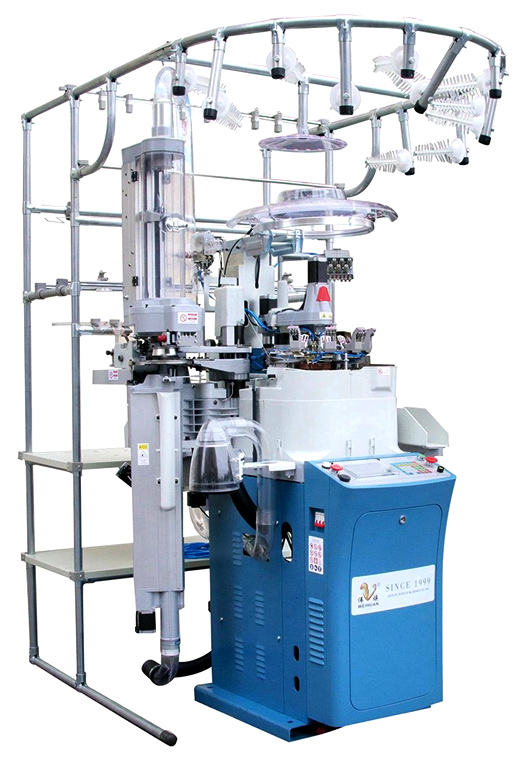

WHR-A6 Auto Linking Socks Machine

SINGLE FEEDER
Model	Cylinder Needle No. & Needle Selector	Technical Specification	Function Introduction
WHR-A6	31½” 96-200 (N)	Maximun Speed: Plain–350rpm Terry–300rpm Needle Gage: 6.5-21 15 color yarn fingers 9 independent pneumatic fingers Ring cutter with mechanical stop	1 main feeder, 6 color, 2 elastic feeder, 6colors in one circle, total 15colors in one sock. High heel,big heel, small heel, left and right feet, 180° anti socks, one-time forming invisible socks, two colors sock head/heel and 3D socks. Terry pattern: with a seperate device to link seam automatically, with the function of network intelligent management
WHR-A6	33/4″ 96-220 needle (N) 8/9 electronic needle selectors	Maximun Speed: Plain–350rpm Terry–300rpm Needle Gage: 6.5-21 18 color yarn fingers 9 independent pneumatic fingers Ring cutter with mechanical stop	1 main feeder, 7color, 2 elastic feeder, 7colors in one circle, total 18colors in one sock. High heel,big heel, small heel, left and right feet, one-time forming invisible socks, 180’anti socks, two colors sock head/heel and 30 socks. Terry pattern, with a seperate device to link seam automatically with the function of network intelligent management
