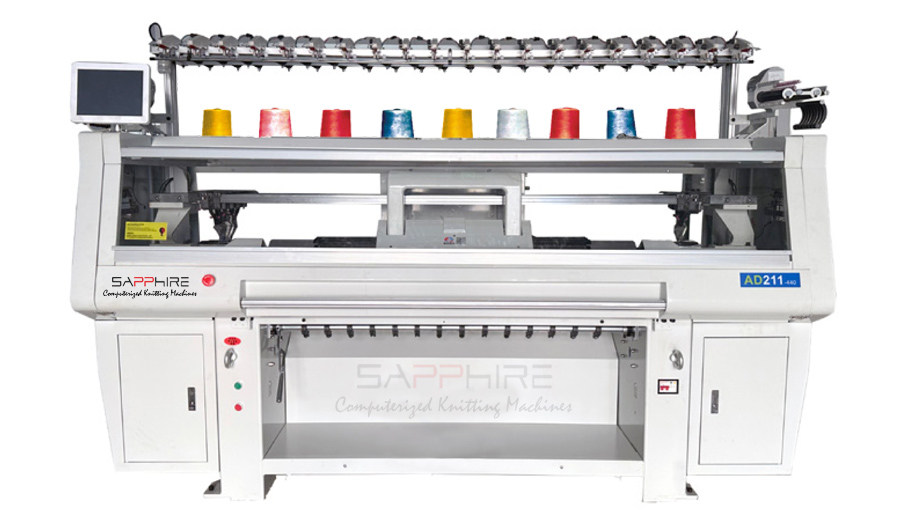

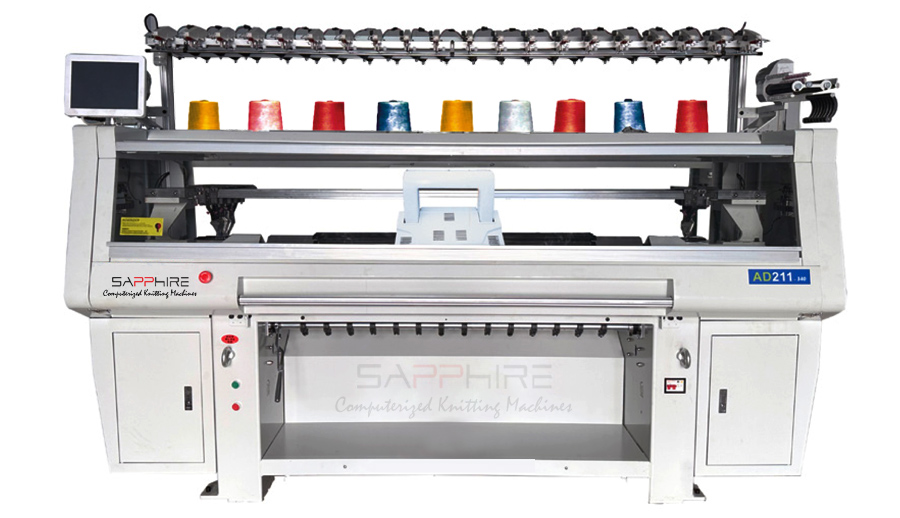

Model No.: FULL-FUCTION“211” SERIE
Computerized Flat Knitting Collar Machine
System Configuration
| Model | AD340/AD352/AD372/AD380 | AD364S/AD452S/AD804S | AD440/AD452/AD472/AD480 | |
|---|---|---|---|---|
| Guage |
3.5.2G, 12G、14G、16G、18G
|
|||
| Knitting width |
40″, 52″, 66″, 72″
|
40″, 52″, 66″, 72 “ | ||
| Knitting system |
Single head 1 system
|
Double head(2+2)system | ||
| Knitting fuction |
Transfer, Knitting，Tuckm Intarsia, Jacquard, Narrowing, 3ways
|
|||
| Knitting speed |
Controlled by servo motor Max 1.2m/s Carriage rapit return;
|
|||
| Racking |
Controlled by servo motor racing withi n 1 inches and with fine micro-adjustion function:
|
|||
| Encoder |
Advanced encoder adopted
|
|||
| Stitch density |
Controlled by servo motor, selectable adjustable scope supproted by subdivion technology: 0-650 the stitch of the collar can be accurately controlled;
|
|||
| Take down roller |
Programmed instruction controlled by steping motor+Torque Motor, adjustable rage is :0-99 Up and down take down system can work separately or together
|
|||
|
Yam carrier
|
6 colors two side inter changable feeders
|
|||
| Protecting |
The machine will aucomatic alarm of yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device
|
|||
| Operation display |
Chinese, English, Korean, Spanish, Porugues, Turkish, French, Arabic
|
|||
| Power |
AC Single Phase 220V 50HZ, adopt advanced CMOS technology, lnstant aneous memory of power outage (continues knitting when power on)
|
|||
| N.W. |
40″ 900KG 52″ 1000KG 72″1180KG
|
40″ 920KG 52″ 1030KG 72″ 1280KG
|
||
| Length |
2580MM 2780MM 3380MM
|
2580MM 2780MM 3380MM
|
||
| Comb System | Optional | |||
