OUR PRODUCTS RANGE
Model No.: XF-3FSJ | XF-4FSJ | XF-6FSJ
- High speed and the most productive machine.
- Easy conversion to fleece, terry under replace accessories.
- Multi-feeder as option.
- Ensure Perfect stitch definition and high quality single jersey fabrics at super high production and efficiency rates with minimum operative maintenance costs.

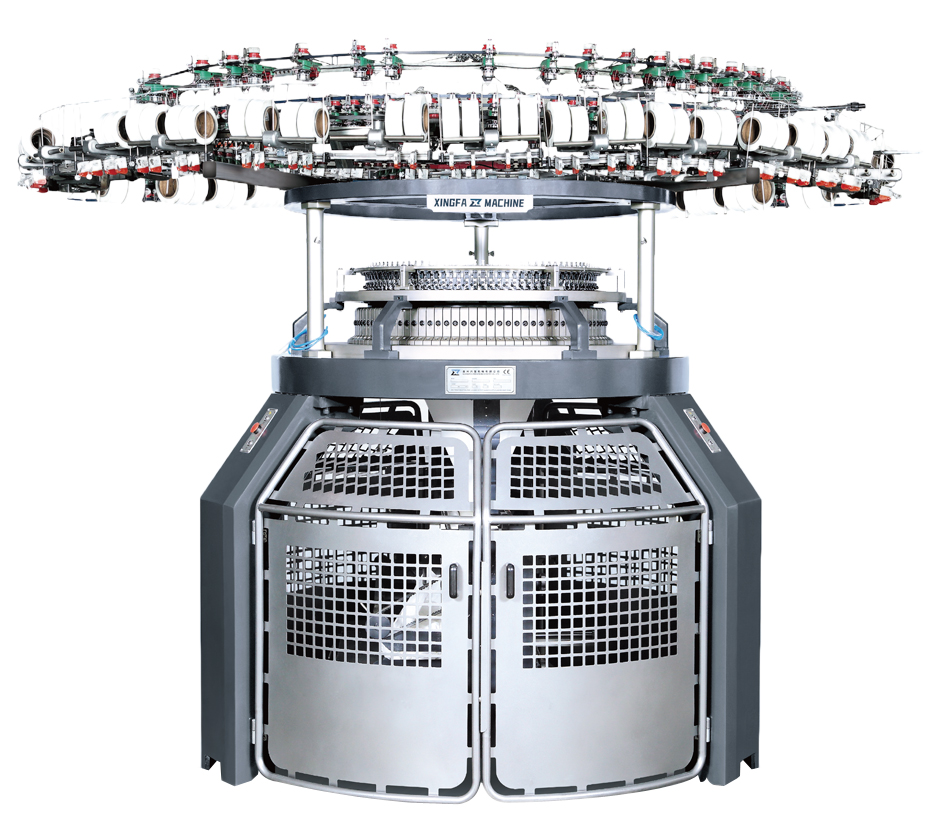

Computerized Single Jersey Circular Knitting Machine
Technical Specification For Computerized Single Jersey Circular Knitting Machine
|
Model
|
Diameter
|
Gauge
|
Feeder
|
Applicable Yarn Material
|
|---|---|---|---|---|
|
XF-3FSJ
|
18-38″
|
7G-50G
|
54F-114F
|
Cotton, Chemical fiber Blended yarn,
Silk and wool etc. |
|
XF-4FSJ
|
30″-36″
|
120F-136F
|
||
|
XF-6FSJ
|
18″-44″
|
108F-264F
|
Speed of machine depend on yarn used, knitting condition, gauge etc. So please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
Guide Speed
|
DIAMETER
|
GAUGE
|
FEEDER
|
RPM
|
|---|---|---|---|
|
30″
|
3G-50G
|
90F
|
20-35rpm
|
|
32″
|
96F
|
||
|
36″
|
108F
|
||
|
38″
|
114F
|
||
|
40″
|
120F
|
|
Packing and Ship
|
|
|---|---|
|
XF-SJ
|
34″ DIAMETER
|
|
N.W. APPROX
|
2.0T
|
|
G.W. APPROX
|
2.5T
|
|
WOODEN BOX SIZE
|
2.25m X 2.23m X 2.25m
|
Applications
