Model No.: XF-FL
- High Quality Fleece fabrics on highly productive quantity.
- 3 Feeders per inch. 4 track cams in cylinder.
- Tie-in yarn, ground yarn, lay-in yarn knitting perfectly.

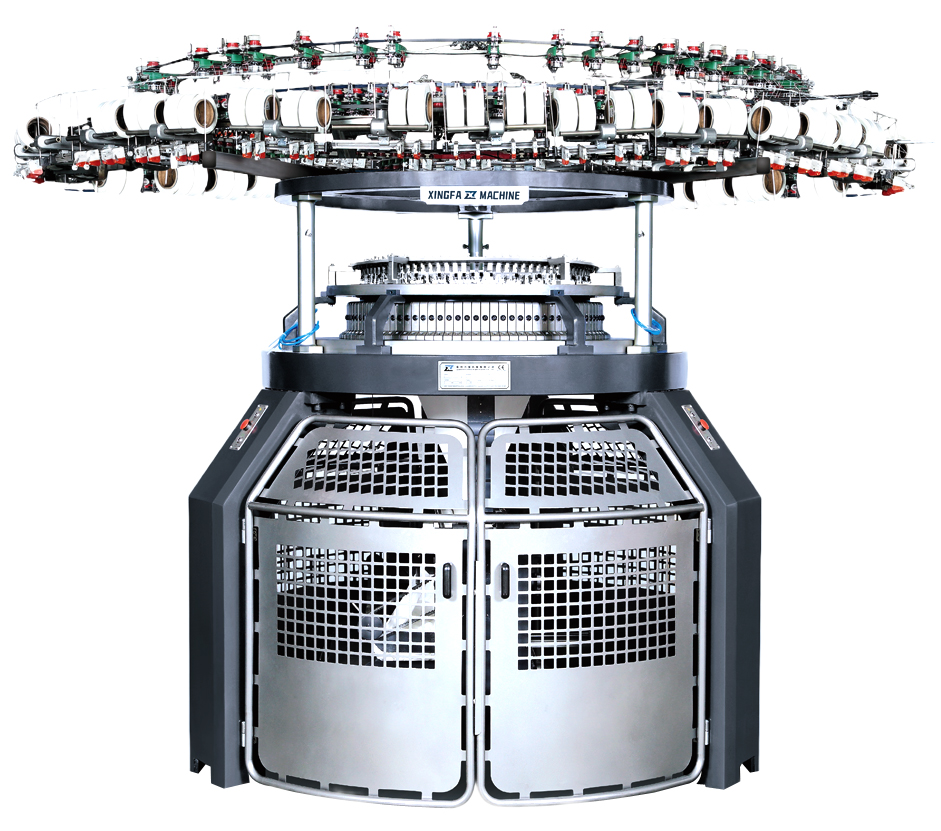

Computerized Three-Thread Fleece Circular Knitting Machine
Technical Specification For Computerized Three-Thread Fleece Circular Knitting Machine
|
Model
|
Diameter
|
Gauge
|
Feeder
|
Applicable Yarn Material
|
|---|---|---|---|---|
|
XF-FL
|
30″
|
8G-28G
|
90F
|
Cotton, Chemical Fiber, blended yarn,
Silk and Wool etc. |
|
32″
|
96F
|
|||
|
34″
|
102F
|
|||
|
36″
|
108F
|
Reference of Yarn Material/ GSM / Width
|
Diameter
|
Gauge
|
RPM
|
Yarn Material
|
GSM
|
Width |
|---|---|---|---|---|---|
|
32″
|
20G
|
23
|
Tie-in Yarn 75D 75-83cm Ground Yarn 30s 265-320g 34″ 22 Lay-in Yarn 12s
|
265-320g
|
75-83cm
|
|
34″
|
22
|
81-88cm
|
|||
|
32″
|
26
|
Tie-in Yarn 30s
Ground Yarn 30s Ground Yarn 30s |
200-290g
|
75-83cm
|
|
|
34″
|
24
|
240-290g
|
77-87cm
|
Speed of machine depend on yarn used, knitting condition, gauge etc. So please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
|
DIAMETER
|
GAUGE
|
FEEDER
|
RPM
|
|---|---|---|---|
|
24″
|
14G-24G
|
72F
|
20-30rpm
|
|
26″
|
78F
|
||
|
30″
|
90F
|
||
|
34″
|
102F
|
|
Packing and Ship
|
|
|---|---|
|
XF-FL
|
34″ DIAMETER
|
|
N.W. APPROX
|
2.0T
|
|
G.W. APPROX
|
2.5T
|
|
WOODEN BOX SIZE
|
2.25m X 2.23m X 2.25m
|
Applications
