OUR PRODUCTS RANGE
Model No.: XF-TM | XF-PM
- Latest design for terry machine.
- More convenient for worker operation in yarn feeding system.
- Offer different length loop sinker as opinion.
- Offer more knit cam, tuck cam, miss cam for more terry structure as opinions.

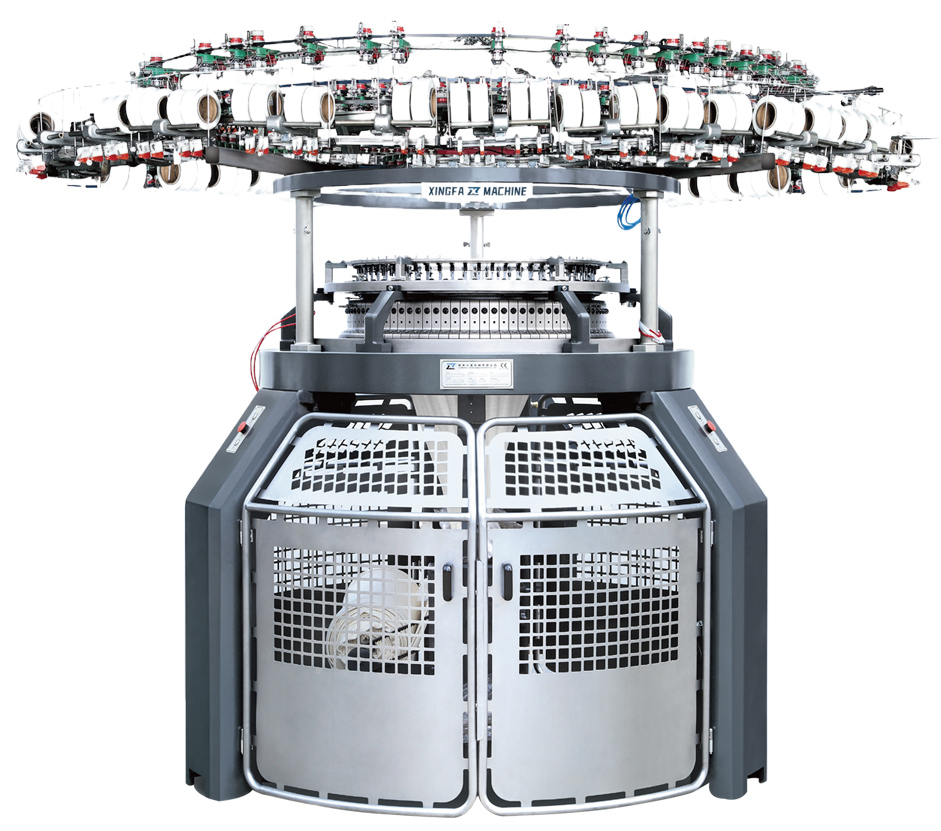

Computerized Terry Circular Knitting machine
Technical Specification For Computerized Terry Circular Knitting machine
|
Model
|
Diameter
|
Gauge
|
Feeder
|
Loop sinker optional
|
|---|---|---|---|---|
|
XF-TM
|
18-38″
|
7G-50G
|
36F-104F
|
1.5mm-5.0mm
|
|
XF-PM
|
28F-84F
|
Speed of machine depend on yam used, knitting condition, gauge etc. So please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
Guide Speed
|
DIAMETER
|
GAUGE
|
FEEDER
|
RPM
|
|---|---|---|---|
|
24″
|
18G-22G
|
48F/40F
|
15-25rpm
|
|
30″
|
60F/48F
|
||
|
34″
|
68F/56F
|
|
Packing and Ship
|
|
|---|---|
|
XF-TM/PM
|
34″ DIAMETER
|
|
N.W. APPROX
|
2.0T
|
|
G.W. APPROX
|
2.5T
|
|
WOODEN BOX SIZE
|
2.25m X 2.23m X 2.25m
|
Applications
